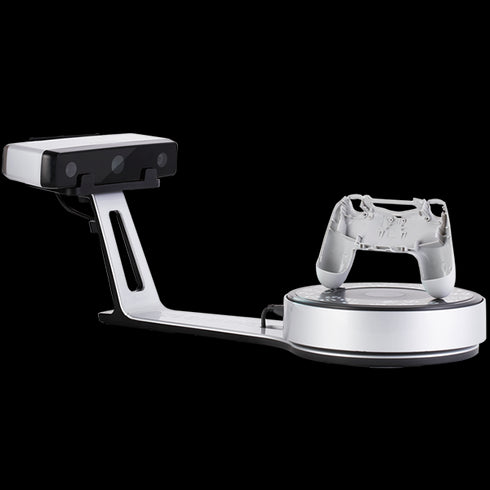

EinScan-SP (Platinum) 3D Scanner

SKU:

VENDOR: Einscan

$3,915.00$3,815.00
GST included. Shipping calculated at checkout.

Hurry up! Sales Ends In

Hurry! Only 0 Left in Stock!

Base
Discovery Pack
Stripe
Shopify Secure
AES 256bit
PayPal
Visa
MasterCard
PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

The expert choice with enhanced experience

  • Faster scanning speed and higher accuracy

  • Make high resolution scanning available to everyone

  • Meet all your professional demands of design, reverse engineering and digital industrial applications

  • Serious accuracy proven process

Easier Operation, Faster Scanning, User Friendliness, and Enhanced Efficiency

Time is of the essence and capturing speed is vital.  The EinScan SP takes 4 seconds for single scans and for a 360-degree scan using the turntable, it will take only 1 minute on the EinScan SP.

The EinScan SP takes 4 seconds for single scans and for a 360-degree scan using the turntable, it will take only 1 minute on the EinScan SP.

The EinScan SP features two scan modes for 3D scanning. Turntable mode allows you to capture objects under 200 x 200 x 200 mm with automatic rotational stitching. Free scan mode, allows you to mount the camera onto a tripod (tripod included with Platinum scanner) and 3D scan larger objects up to 700 x 700 x 700 mm.

Einscan SP 3d scanner HD data capture

The reason why the EinScan SP is the choice for engineers and digital artists is it’s ability to achieve higher accuracy higher precision for a single scan, capable of 0.05mm resolution! The secret is in the registration markers on both the turntable and available as stickers. The software will use these markers on the EinScan SP to perform an accurate auto alignment.

SPECIFICATIONS

Model EinScan-SE – Elite EinScan-SP – Platinum
Scan Mode Fixed Scan Auto Scan Fixed Scan Auto Scan
Mode of Alignment Feature, Manual Turntable, Manual Feature, Markers, Manual Turntable, Markers, Manual, Turntable Coded Targets
Single Shot Accuracy ≤0.01mm ≤0.05mm
Min. Scan Volume 30 x 30 x 30mm
Range of Single Capture 200 x 150mm
Scan Speed <8 seconds <2 minutes <4 seconds <1 minute
Point Distance 0.17 – 0.2mm
Texture Yes
File Format OBJ, STL, ASC, PLY
Camera Resolution 1.3 Mega Pixels
Light Source White Lights
Stand-off Distance 290 ~ 480mm
Computer Requirements 1 ×USB 2.0 or 3.0 – Win7, Win8, Win10 (64 bit), Dual-core i5 or higher, >8 G 1 ×USB 2.0 or 3.0 – Win7, Win8, Win10 (64 bit), Dual-core i5 or higher, >16 G
Weight (unpacked) 2.5kg 4.2kg
Weight (packed) 4.9kg 7.0kg
Dimension 570 x 210 x 210mm
Power Supply 50W
Input Voltage DC: 12V, 3.33A
Calibration Board Standard HD
Turntable Standard Turntable with Markers
Load Capacity of Turntable 5kg
