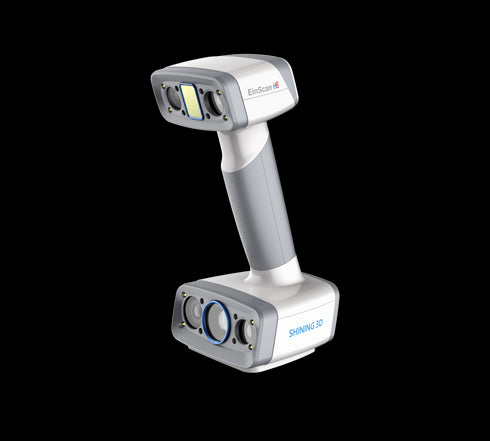

EinScan H Infrared Handheld incl. SolidEdge

SKU: EinScan H

VENDOR: Einscan


You Save: $1,190.00 (14%)


Evolutionary scanning with EinScan H

Based on the hybrid structure light technology of both LED and invisible infared light, EinScan H makes scanning human faces a more comfortable experience. No more harsh lights in your eyes.

Achieve high quality, full-colour scanning in a matter of minutes with EinScan H’s built-in colour camera and a larger scanning window.

Hybrid Light Source

The EinScan H integrates LED structured light and invisible infrared light into one device. Additionally, advance presets designed for different scan modes give users a broad range of applications.

Comfortable scanning experience

Utilising the invisible infrared light in the new face-scanning mode means human models will not have to endure any harsh lights in their eyes during the scanning process.

Fine Detail

Achieve high fidelity scanning and accurate captures of full geometry from objects such as artwork and furniture. High resolution scanning of up to 0.25mm, high accuracy of scanned data up to 0.05mm and volumetric accuracy of 0.1mm/m

High Efficiency

With a scan speed of up to 1,200,000 points/s and a large scan FOV of 420 x 440 mm, the EinScan H ensures faster scanning even for large objects. A smart alignment algorithm will be able to compensate adjusmets when the scanning process encounters small movements.

Full-Colour Reproduction

The built-in colour camera supports full-colour texture capturing, as well as tracking via texture.


Scan Mode Standard Scan Body Scan Face Scan
Light Source White Light, visible White Light, visible Infrare, invisible
Safety LED Light (eye-safe) LED Light (eye-safe) CLASS I (eye-safe)
Scan Accuracy Up to 0.05mm Up to 0.05mm Up to 0.6mm
Volumetric Accuracy* 0.05+0.1mm/m 0.05+0.1mm/m /
Scan & Align Speed 1,200,000 points/s, 20FPS 1,200,000 points/s, 20FPS 720,000 points/s, 20FPS
Camera Frame Rate 55FPS
Align Modes Markers Alignment、Feature Alignment、Hybrid Alignment、Texture Alignment Feature Alignment Feature Alignment
Working Distance 470mm
Depth of Field 200-700mm 200-700mm 200-1500mm
Maximum FOV 420mm*440mm 420mm*440mm 780mm*900mm
Point distance 0.25mm-3mm 0.5mm-3mm 0.5mm-3mm
Built-in Color Camera Yes
Connection Standard USB 3.0
Output Formats OBJ; STL; ASC; PLY; P3 ; 3MF
Dimensions 108mmx110mmx237mm
Weight 703g
Certifications CE,FCC,ROHS,WEEE,KC
Recommended Configuration OS:Win10,64 bit;Graphics card:NVIDIA GTX1080 or higher;Video memory:≥4G;Processor:I7-8700;Memory:≥32GB


What's In The Box

- EinScan H

- Power Adapter

-Power Cable

- Calibration board

- Calibration board support

- USB drive
