EinScan Pro 2X Plus with SolidEdge Shining Edition

SKU:

VENDOR: Einscan

$10,500.00
GST included. Shipping calculated at checkout.

Hurry up! Sales Ends In

Hurry! Only -1 Left in Stock!

Standard
HD Prime Pack
Colour Texture Pack
Industrial Pack
All 3 Packs
Stripe
Shopify Secure
AES 256bit
PayPal
Visa
MasterCard
PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

3D Scanners for Art, Automotive, Education & Healthcare.

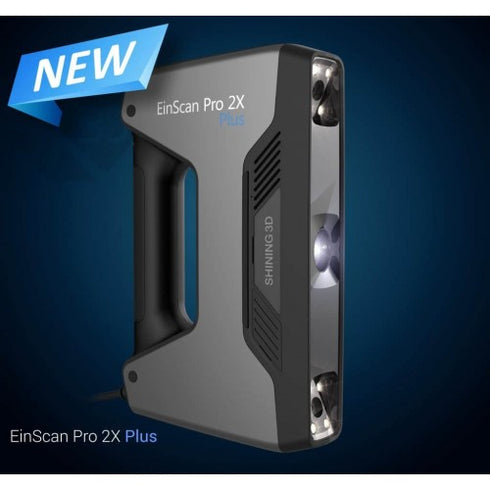

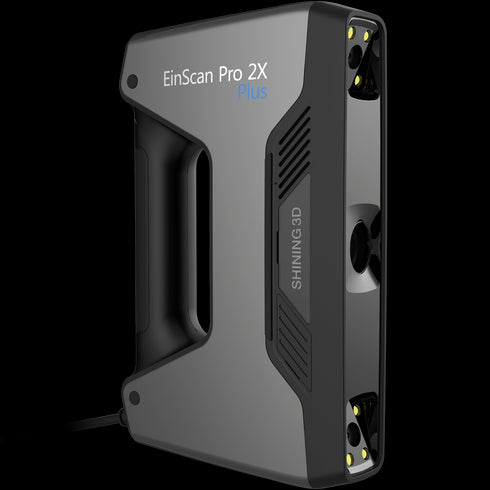

Einscan-Pro 2X Plus Overview

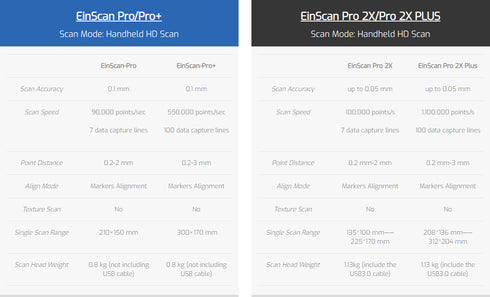

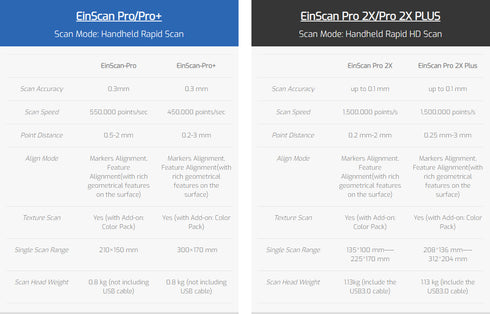

With four versatile scan modes, the EinScan-Pro 2X PLUS Handheld 3D Scanner can scan real objects for 3D printing. The lightweight, ergonomic design makes it portable and easy to use for larger objects. The 2X PLUS scanner has a single-scan range that is 1.6 times larger than the 2X scanner, up to 312 x 204 mm. It can produce portable as well as high-accuracy scans. This scanner comes bundled with Solid Edge SHINING 3D Edition CAD software, a design tool from Siemens PLM software. It allows you to reverse engineer objects and design models from the scan data. You can also export to SolidWorks, Inventor, Catia or other CAD programs (sold separately).

What's in the box - Basic Pack

Everything you need is in the box, ready for you to start capturing your objects into 3D print-ready files.

EinScan Pro 2X Plus
1 x EinScan Pro 2X Plus handheld 3D Scanner
1 x USB 3.0 cable
1 x SolidEdge Shining 3D Edition
1 x Rapid Registration module
1 x Calibration board
1 x pack Adessive reflective marker dots

Available add-on packs

Industrial Pack
1 x Automatic USB turntable
1 x Tripod and scanner mount

Colour Texture Pack add-on
1 x Colour Texture module

HD Prime Pack
1 x HD Prime Pack used in Rapid HD scanning mode

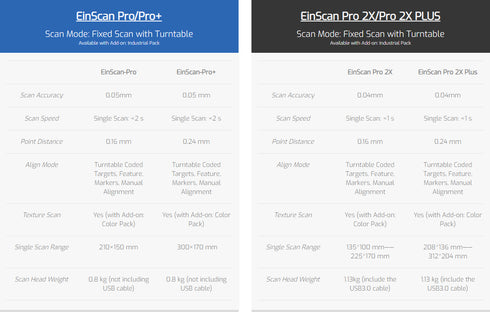

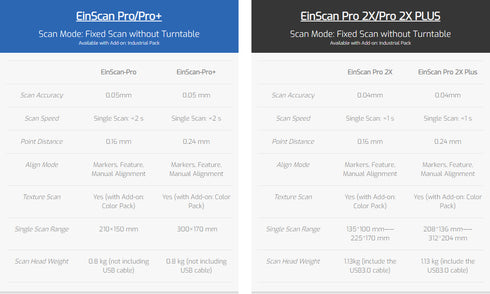

Scan Mode Handheld HD Scan Handheld Rapid Scan Fixed Scan with Turntable
(with Add-on: Industrial Pack)
Fixed Scan without Turntable
(with Add-on: Industrial Pack)
Scan Accuracy up to 0.05 mm up to 0.1 mm 0.04 mm(single shot accuracy) 0.04 mm(single shot accuracy)
Volumetric Accuracy* 0.3 mm/m (Markers Alignment) 0.3 mm/m (Markers Alignment) / /
Scan Speed 20 frames/s; 110,000 points/s; 100 data capture lines 30 frames/s; 1,500,000 points/s Single Scan<0.5s Single Scan<0.5s
Point Distance 0.2 mm-3 mm 0.25 mm-3 mm 0.24 mm 0.24 mm
Single Scan Range 208*136 mm——312*204 mm
Depth of Field ±100 mm
Working Distance 510 mm
Light Source LED
Align Mode Markers Alignment Markers Alignment, Feature Alignment (with rich geometrical features on the surface), Hybrid Alignment (Markers and Feature) Turntable Coded Targets, Feature, Markers, Manual Alignment Markers, Feature, Manual Alignment
Texture Scan No Yes (with Add-on: Color Pack) Yes (with Add-on: Color Pack) Yes (with Add-on: Color Pack)
Outdoor Operation Set up the shelter or cover to avoid direct sunlight
Special Objects for Scanning For the transparent, highly reflective or some dark objects, please spray powder before scanning
Printable Data Output Able to export watertight 3D model directly to 3D printing
Output Formats OBJ; STL; ASC; PLY; P3 ; 3MF
Scanner Body Weight 1.13kg (include the USB3.0 cable)
Supported OS Win7; Win8; Win10; (64bit)
Recommended Configuration Graphics card: NVIDIA GTX1060 and higher; video memory: >4G, processor: I7-8700, memory: 32G; interface: high-speed USB 3.0
Required Configuration Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
*volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.3mm per 100cm. The conclusion is obtained by measuring the center of sphere under markers alignment.
