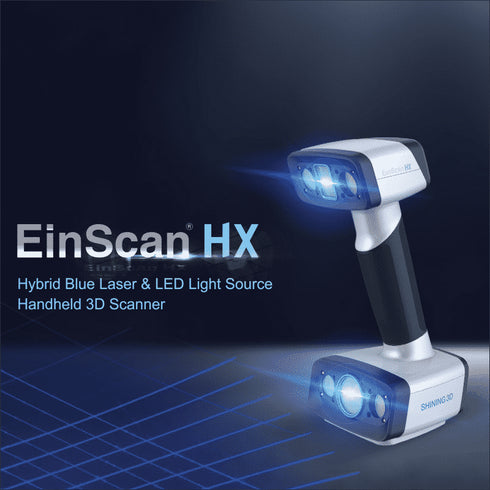

EinScan HX - Hybrid Handheld (Laser+LED) incl SolidEdge + Geomagic Essentials


VENDOR: Einscan


You Save: $215.00 (2%)


Introducing The Next Generation EinScan HX

By blending laser and LED 3D scanning technologies into a new hybrid, the EinScan HX gives user the ability to scan a wider range of applications and opens up more types of objects that can be scanned.

The EinScan HX provides a better performance on dark or reflective surfaces, as well as being less sensitive to ambient light.

High Efficiency

The processing speed of the EinScan HX in Rapid Scan Mode is up to 1,200,000 points/s.

Additionally, the multiple blue laser lines in Laser Scan Mode make quick work of scanning of most objects. This means you can reverse engineer, CAD/CAM, 3D  printing sooner and faster.

Reliable Results

The high resolution and accuracy meet the needs of most industrial application, for example reverse engineering and measuring.
Minimum point distance of 0.05mm; accuracy up to 0.04mm under Laser Scan Mode.

Portable & Easy to Use

EinScan HX is plug and play and includes the user-friendly ExScan software. ExScan is easy to operate, no matter if you are new to 3d Scanning or a veteran. The ergonomic design of the EinScan HX offers portability and flexibility to be able to capture those hard to reach places and offers a comfortable scanning experience.

Full Colour

With a built-in colour camera, the EinScan HX supports full-colour texture capture, as well as the ability to track the object using the information based on the object’s colour and texture.

Bridging the gap between 3D Scanning and 3D CAD

Geomagic Essentials is the essential bridge between 3D scanning and design. Geomagic Essentials processes scan data in a way that makes it compatible with your native CAD workflow. This makes it the ideal
solution for scan to print and reverse engineering applications.


Scan Mode Rapid Scan Laser Scan
Scan Accuracy Up to 0.05mm Up to 0.04mm
Volumetric Accuracy* 0.05+0.1mm/m 0.04+0.06mm/m
Scan Speed 1,200,000 points/s 20FPS 480,000 points/s 55FPS
Camera Frame Rate 55FPS 55FPS
Align Mode Feature Alignment, Markers Alignment, Texture Alignment, Hybrid Alignment Markers Alignment
Working Distance 470mm 470mm
Depth of Field 200mm-700mm 350mm-610mm
Max FOV 420mm*440mm 380mm*400mm
Point Distance 0.25mm – 3mm 0.05mm-3mm
Light Source Blue LED 7 Blue Laser Crosses
Safety Eye-safe Class I(Eye-safe)
Built-in Color Camera Yes
Texture Scan Yes No
Connection Standard USB 3.0
Output Formats OBJ; STL; ASC; PLY; P3 ; 3MF
Dimensions 108mmx110mmx237mm
Weight 710g
Certifications CE,FCC,ROHS,WEEE,KC
Recommended Configuration OS:Win10,64 bit;Graphics card:NVIDIA GTX1080 or higher;Video memory:≥4G;Processor:I7-8700;Memory:≥32GB


Whats's In The Box

- EinScan HX

- Power Adapter

- Power Cable

- Calibration board

- Calibration board support

- Markers

- Marker removal tool

- USB drive
