Printer |
|
| Printing Technology | MEM (Melted Extrusion Modelling) |
| Extruder | Single |
| Nozzle Diameter | 0.2mm, 0.4mm, 0.6mm, and 0.5mm (TPU) |
| Extruder Maximum Temperature | 299℃ |
| Extruder Maximum Travel Speed | 200 mm/sec |
| XYZ Accuracy | 7, 7, 1.5 micron |
| Connectivity | USB Cable, Wi-Fi, LAN and USB Drive |
| Display | 7″ Full Colored LCD Touchscreen |
| Build Volume | 180 × 230 × 200 mm (7″ x 9″ x7.8″)（XYZ） |
| Printed Object Accuracy | ±0.1mm/100mm |
| Layer Resolution | 0.05/0.1/0.15/0.2/0.25/0.3/0.35/0.4mm |
| Build Plate Maximum Temperature | 100℃ |
| Calibration and Levelling | Manual Calibration and Leveling |
| Build Plate Surface | Perforated, Heated |
| Pause to Change Filament Type | Yes |
| Out of Filament Detection | Yes |
| Filament | UP Fila ABS, ABS+, PLA, TPU and more |
| Filament Diameter | 1.75mm |
| Filament Bay Capacity | 500 – 2000g |
| Filament Holder Capacity | 500 – 1000g |
| Compatible with 3rd Party Filament | Yes |
Zoom
PRODUCT INFORMATION

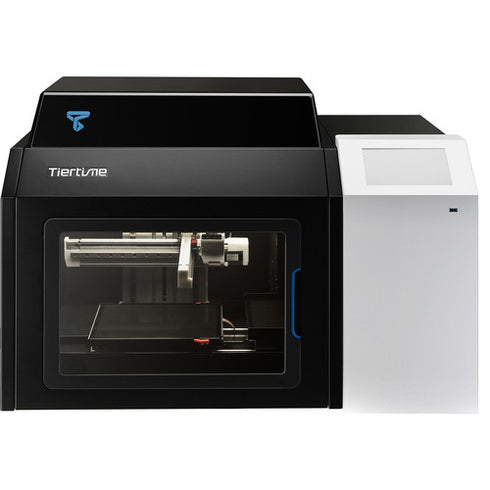

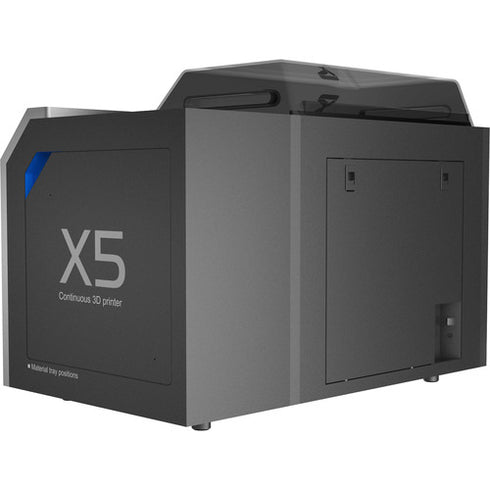

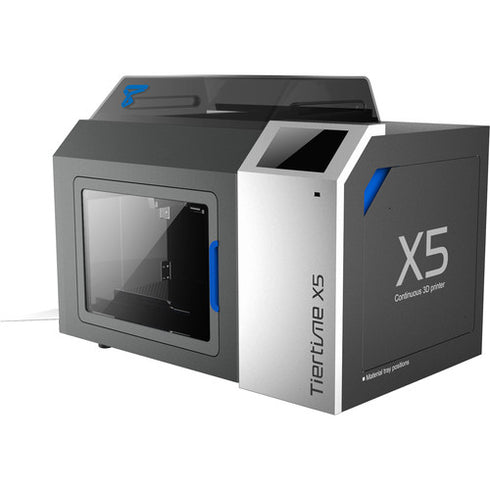

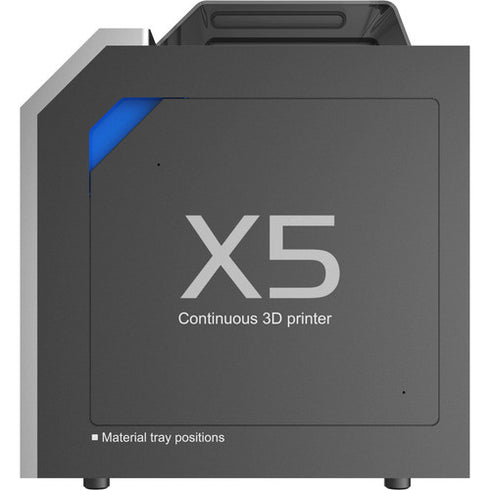

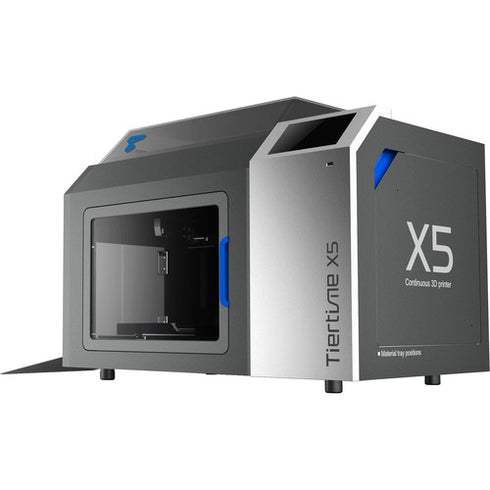

The X5 continuous 3D Printer is a great addition to the Tiertime range, This 3D Printer is focused at the Architectural or Engineering firm that has a requirement for automated continuous 3D Printing, the same object can be printed multiple times (12 in total) or different objects can be queued to print one after another. this is particularly useful for small production runs or to save time in a dynamic work environment.

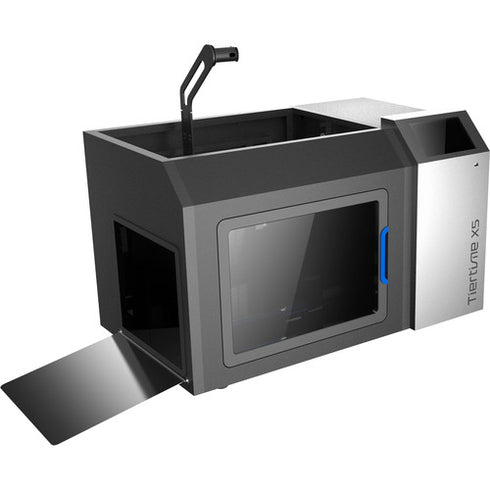

The X5 achives this through a well-design interchangeable plate system, where the model and build plate is automatically removed from the 3D Printer on a sliding conveyor type system, once the print is complete.
At Digital 3D we have again tested this printer with Autodesk Inventor, Solidworks and TurboCAD and found the native software "UP Studio" seamlessly imports .STL files with ease. The software is super intuitive and allows easy placement, alignment, rotation and scaling.
Software |
|
| Software | UP Studio Version 2.5 or above |
| Supported OS | Windows 7 (SP1) or higher (32 bit and 64 bit) Mac OS 10.10 |
| Hardware Requirements | OpenGL 2.0 At least 4GB of RAM |
| Importable File Formats | .up3, .ups, .tsk, .stl, .obj, .3mf, .ply, .off, .3ds |
| Preview Support Structures | Yes |
| Editable Support Structures | Yes |
Physical Dimensions |
|
| Machine Dimensions | 850 x 625 x 520 mm (33.4″ x 24.6″ x 20.5″) |
| Net Weight | 52kg |
| Shipping Box Dimensions | – |
| Shipping Box Weight | 70kg |
Power Requirements |
|
| Power Input | 110-240VAC，50-60Hz，220W |
