Durability to Last
The average CAD user clicks thousands of times during a standard workday. CadMouse Pro Wireless Left is designed to handle over 50 million clicks to its main buttons, giving users mechanical longevity a CAD professional should expect from a premium CAD product. Low friction, wear resistant polytetrafluoroethylene (PTFE) feet give CadMouse Pro Wireless Left smooth, precision movements long after the average mouse. A 3-year warranty combined with built-to-last design means CAD professionals will experience years of high-quality CadMouse Pro Wireless Left use.
High Precision & Performance
The precision optical sensor, high adaptive polling rate and specially developed polytetrafluoroethylene (PTFE) feet combine to create an experience of controlled performance that feels like CadMouse Pro Wireless Left is directly hardwired to the CAD user’s every action.
This immediacy and precision are maintained when running off its rechargeable lithium polymer battery, providing up to three months of worry-free wireless use between charges*.
*Battery life based on 8 hours per day, 5 days per week use.Triple Connectivity
Either via Bluetooth Low Energy, the 3Dconnexion Universal Receiver, or micro USB cable, CadMouse Pro Wireless Left offers convenient connectivity wherever you are.
Professional Scroll & Zoom Navigation in CAD
CAD professionals need to zoom in-and-out of 3D environments with precision, and an ability to scroll through long documents with control and efficiency during a fast-paced workday. Thanks to improved 3DxWare 10 Software, conveniently located QuickZoom buttons, and an advanced Smart Scroll Wheel 2, CAD users will experience meticulous control of their drawings and 3D images, and easy document navigation tailored to their needs.
Smart Mouse Wheel 2
Adjustable smart scrolling speed with inertia in documents and browsers is ideal for working in many-paged documents, allowing the user to find specific pages quickly and easily.

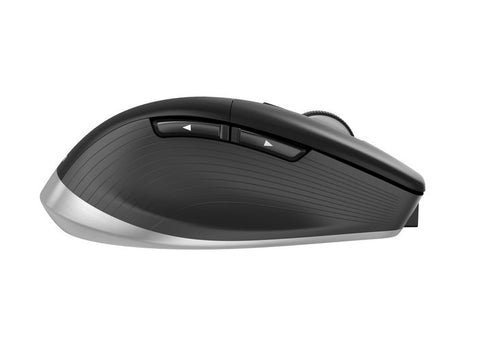

QuickZoom
The QuickZoom feature is easy to use; simply press the thumb buttons to zoom in and out of the cursor’s position in your drawing or 3D model; fine tune the zoom level by continuing to press the corresponding button.
Easy Access to Application Commands
Clicking the Gesture Button behind the Smart Scroll Wheel 2 opens an application or environment-specific radial menu, giving CAD users access to their favourite commands with a simple mouse gesture. 3DxWare 10 software allows custom radial menus for each CAD environment.

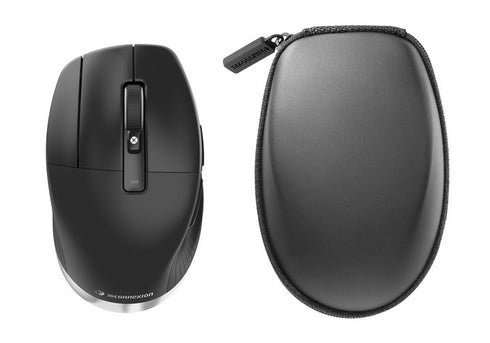

Tailored Carry Case Included
Built and tested in the 3Dconnexion labs, the compact, lightweight, semi-rigid carry case transports CadMouse Pro Wireless Left easily and safely for the modern CAD professional on the move.
Single driver. Multiple devices.
3DxWare 10 is the single driver foundation for all 3Dconnexion devices. Its simple, yet powerful interface makes it easy to individualize all your 3Dconnexion products for peak performance.
The 3Dconnexion Universal Receiver enables the connection of up to five 3Dconnexion wireless products via one, tiny USB receiver.
Technical Specifications
Main Features
7 buttons
Ergonomic shape for comfortable CAD sessions
Specially developed PTFE feet
Smart Mouse Wheel 2
QuickZoom
Customizable radial menu
Sensor
High resolution optical sensor: 7.200 DPI
Adaptive polling rates: 90Hz (Bluetooth),
125Hz (Universal Receiver) and 1.000Hz (cabled)
Wireless & Connectivity
3Dconnexion 2,4GHz Wireless Technology
Bluetooth Low Energy
Micro USB Cable
Dimensions & Weight
Length: 126 mm / 5,0”
Width: 74 mm / 2,9”
Height: 44 mm / 1,7”
Weight: 140 g / 0,31 lb / 4,94 oz
Battery
Battery life: 3 months*
Rechargeable lithium polymer with 1.100 mAh
Charging time: 2 minutes for one day of operation
(7 hours for a full recharge)
Warranty
3-year limited hardware warranty

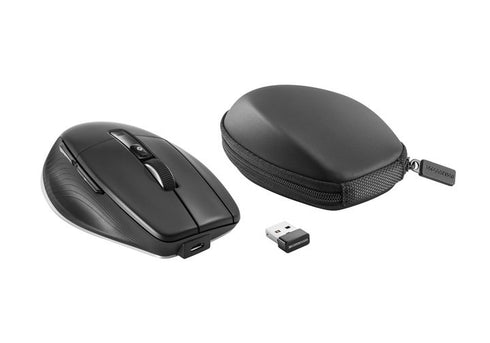

Package Contents
3Dconnexion CadMouse Pro Wireless Left
3Dconnexion Universal Receiver
Carry Case
Braided micro USB cable 1,5 m
Supported Operating Systems
Microsoft Windows, macOS
> more information
Required: Bluetooth Low Energy
Certifications & Registrations
CE, FCC, RCM, BSMI, ROHS, WEEE, NCC, MIC, IC
