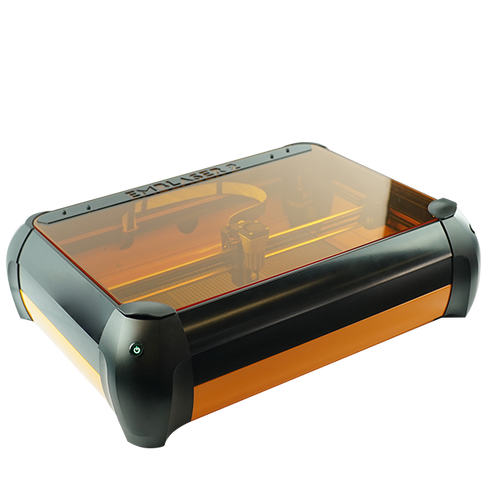

Emblaser 2

SKU:

VENDOR: Emblaser 2

$3,811.50
GST included. Shipping calculated at checkout.

Hurry up! Sales Ends In

Hurry! Only 0 Left in Stock!

Stripe
Shopify Secure
AES 256bit
PayPal
Visa
MasterCard
PRODUCT INFORMATION
CUSTOMER REVIEWS
PRODUCT INFORMATION

Description

Perfect for the classroom
Scan, trace and engrave with a built-in camera
Includes Air-assist, Lightburn & 3-year laser head warranty

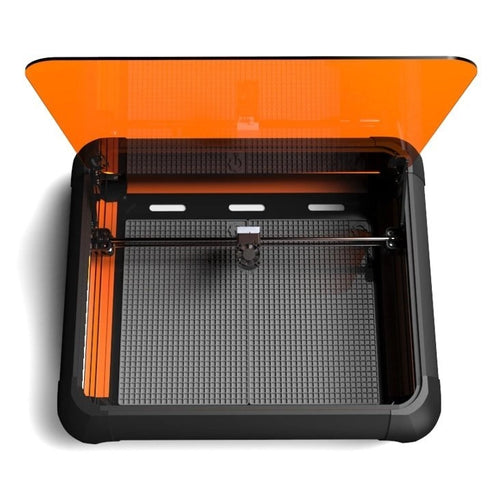

Large Workspace
Build Volume
You can engrave & cut up to 500x300mm with a maximum material height of 50mm

Connectivity
WiFi & USB
Use the Emblaser 2 either wirelessly or via USB. You choose.

Workspace Camera
Scan & Trace
Using the workspace camera you can engrave your drawn design onto the material directly.

Fumes
Extraction or Filtration
Either use the inbuilt fume extraction to vent outdoors or get the optional fume filtration unit

Features

True 3D Cutting and Engraving
One of the incredible features of the Emblaser 2 is true 3D cutting & engraving. You can automatically adjust the height of the laser while cutting and engraving to gain an extra dimension of control. Cut through thicker materials by setting your laser to automatically lower with multiples passes.
Create 3D engravings with depth or automatically adjust the sharpness of your laser to create sharp lines or soft fills.

Material Ignition Alert
‘Material Ignition Alert’, or ‘MIA’ constantly monitors for the potential ignition of a material, a situation that may arise in any laser cutter. If detected, MIA places the machine is a safety mode and sounds a warning alarm.

Air Assist
Air-Assist increases cutting performance and creates cleaner cuts by injecting a stream of high pressure air into the cutting region. Traditionally only available in industrial machines, the Emblaser 2 comes ready to accept our air-assist accessory.
Here is difference air-assist can make on various materials. The left cut is without air-assist running.

Commonly Used Materials

  THICKNESS
ENGRAVED CUT NOTES
Fabric – Cotton 3mm Y Y
Fabric – Felt 6mm N Y All colours except white.
Leather – Vegetable Tanned 4mm Y Y Treatment & color dependant. Air-Assist recommended.
Paper/Card – Corrugated Cardboard 6mm Y Y
Paper/Card – Pasteboard 2.6mm Y Y
Paper/Card – Plain Paper 3mm Y Y Any colour.
Plastic – Acrylic Black 5mm Y Y
Plastic – Acrylic Green, Red Yellow 3mm Y Y
Plastic – Acrylic Translucent (tinted) Y N
Plastic – Acrylic Blue Y
N
Plastic – Acrylic Transparent & White Y* N *Possible with coating.
Plastic – Polypropylene 3mm Y Y Air-Assist recommended.
Wood – Poplar Plywood 6mm Y Y
Wood – Balsa 10mm Y Y
Wood – MDF 3mm Y Y
Anodised Aluminium Y Y
Slate Y N
Corkboard 3mm Y Y Air-Assist required.
Rubber 2mm Y Y Air-Assist recommended.

Specification

Emblaser 2
Dimensions
External Dimensions 540mm x 720mm x 200mm
Material Capacity 500mm x 300mm x 50mm
Optics  0.4mm
Focus Factory pre-focused
Laser Unit Type Solid-State Diode
Equivalent to 15-20watt CO2 laser
Classification Class I
The safest laser device rating available.
Hardware
3D Cutting & Engraving, fully software controlled.
Camera for material alignment.
Wifi & USB Connectivity
Fume Extraction, built-in.
Internal Workspace Lighting
Accesories

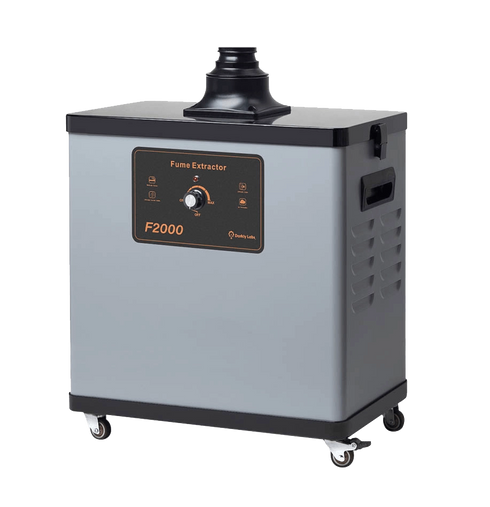

 Fume Filtration System
Air-Assist System

What's in the Box

1 x Fully assembled Emblaser 2 including air-assist & camera
1 x seats LightBurn software (if you are a school you can apply for 50 free Lightburn seats)
4 x Cutting Mats
1 x Exhaust tube for venting out to a window
1 x Power Adapter
1 x Power Cord
1 x Tool  &  Cleaning Kit
1 x USB Cable
Additional Accessory
Fume Filteration unit
